Name: 10L Black Wafer Fuel Tank for Diesel Air Heater with Lockable Cap and Digital Level Sender
SKU: FuelTnkWAF10LDS
Availability: BackOrder

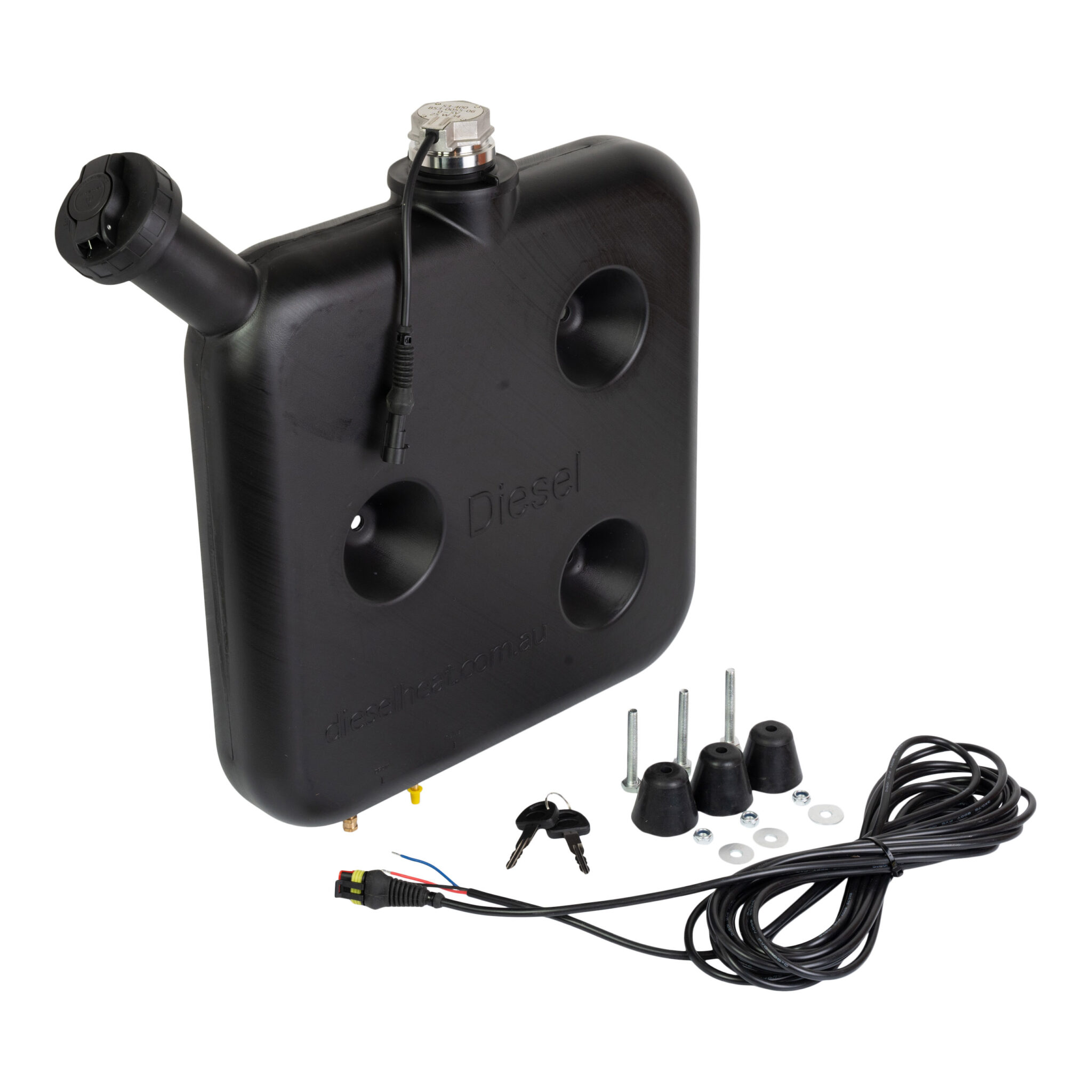

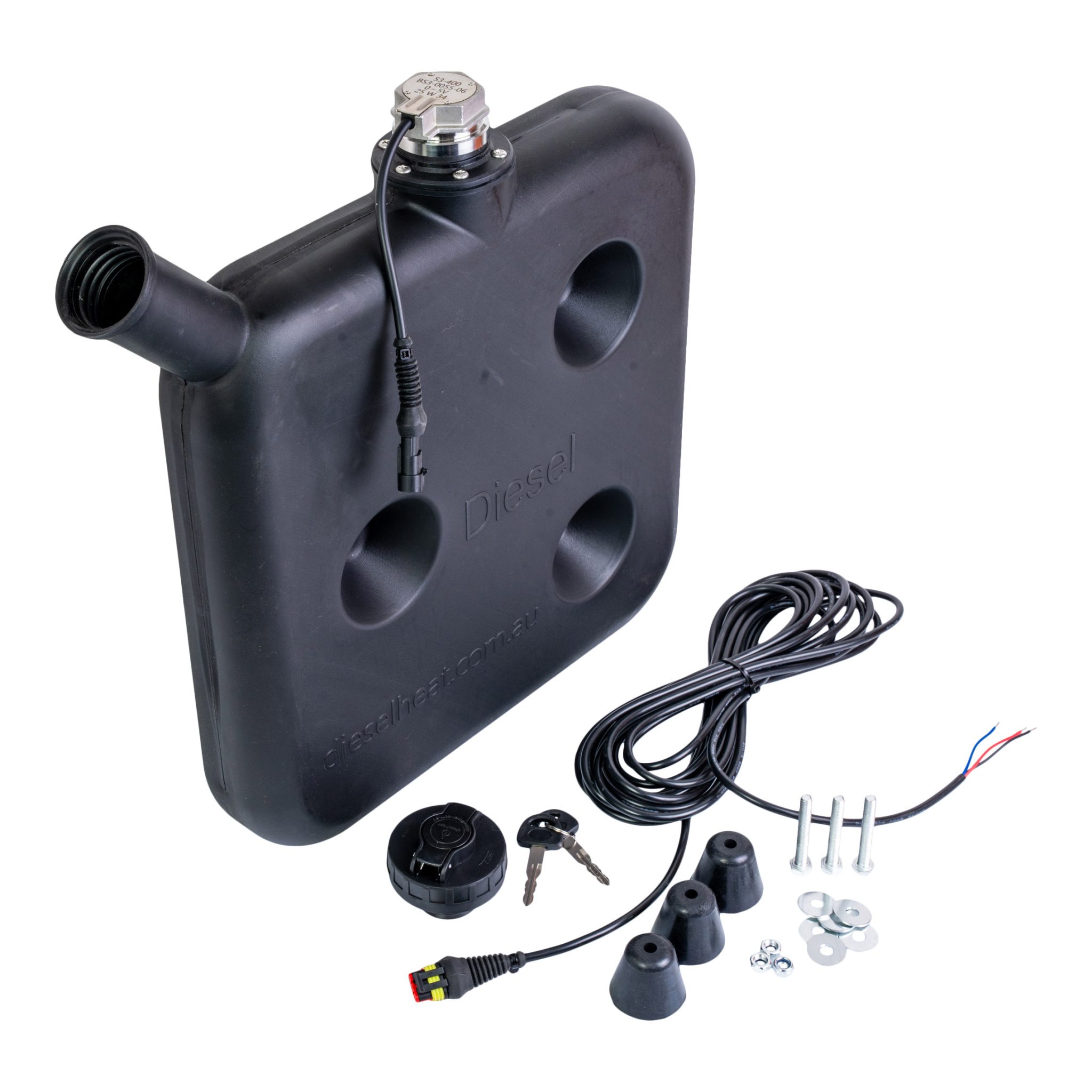

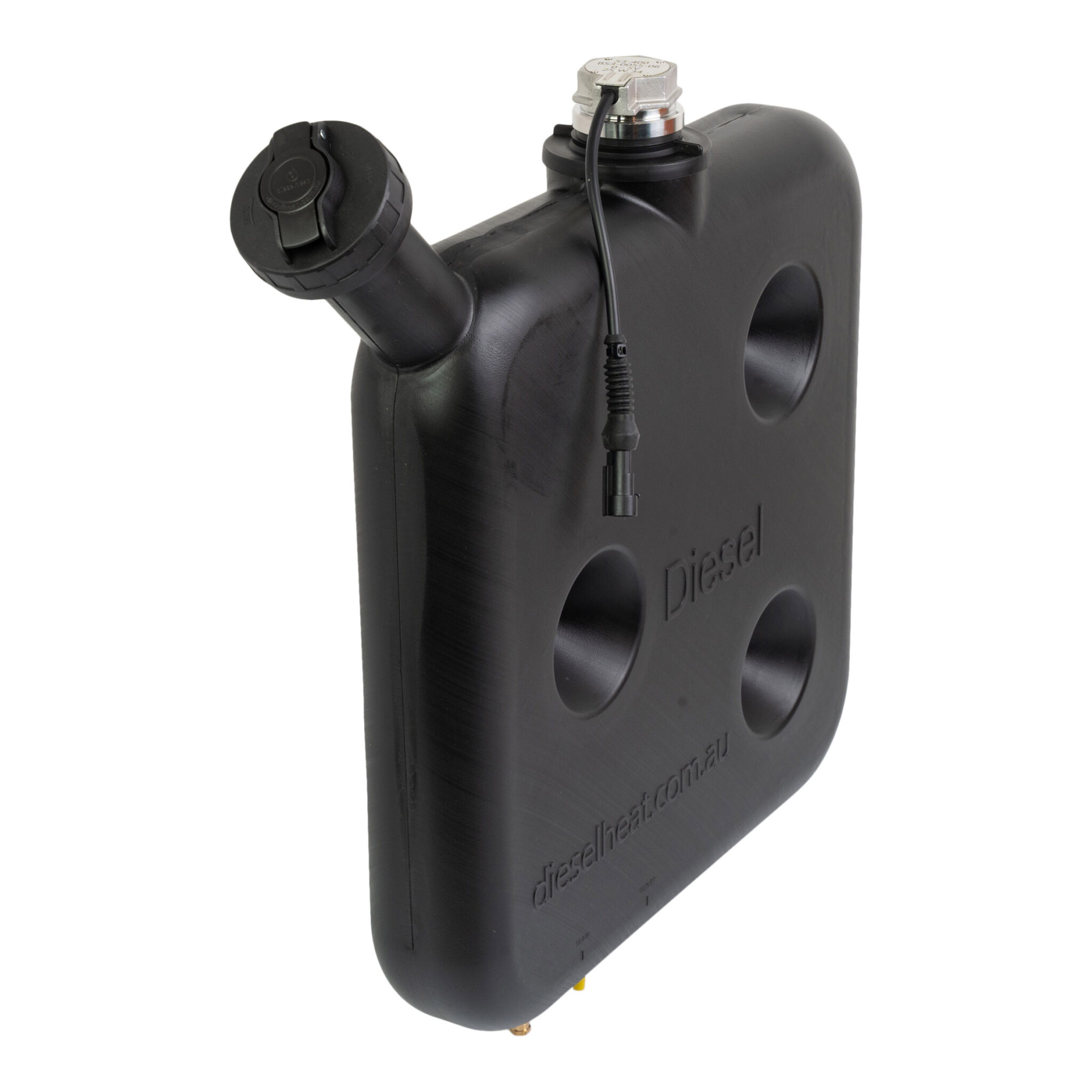

10L Black Wafer Fuel Tank for Diesel Air Heater with Lockable Cap and Digital Level Sender

$279.00

Display your fuel level inside your caravan using existing systems like Redarc Rogue, Garmin Empirebus or a stand alone gauge using the all stainless steel high quality fuel level sender combined with the high quality UV stable black tank with lockable lid.

Available on backorder

SKU:FuelTnkWAF10LDS

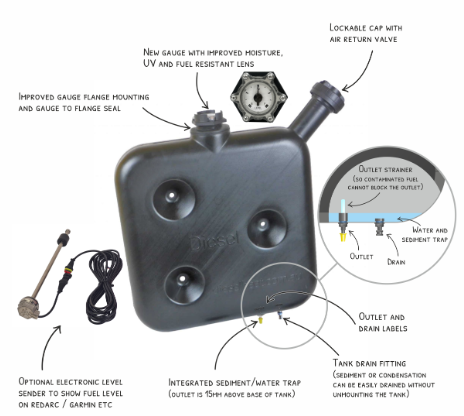

Diesel Heater Lockable Wafer Tank

strong moulded tank with thick walls to withstand impacts and rough treatment.
high quality stainless steel digital sender with 8m cable to send fuel level to an internal display
high quality totally sealed fuel level gauge.
lockable screw on cap with standard automotive thread so can be replaced with an off the shelf cap if lost or damaged.
dust cap on key hole to keep dirt and water out of the lock mechanism.
breather in cap with non return valve minimises fuel splashing when tanks are bounced around.
rubber mounting feet to allow installation for filling from the left or right.
mounting bolts with nylock nuts included.

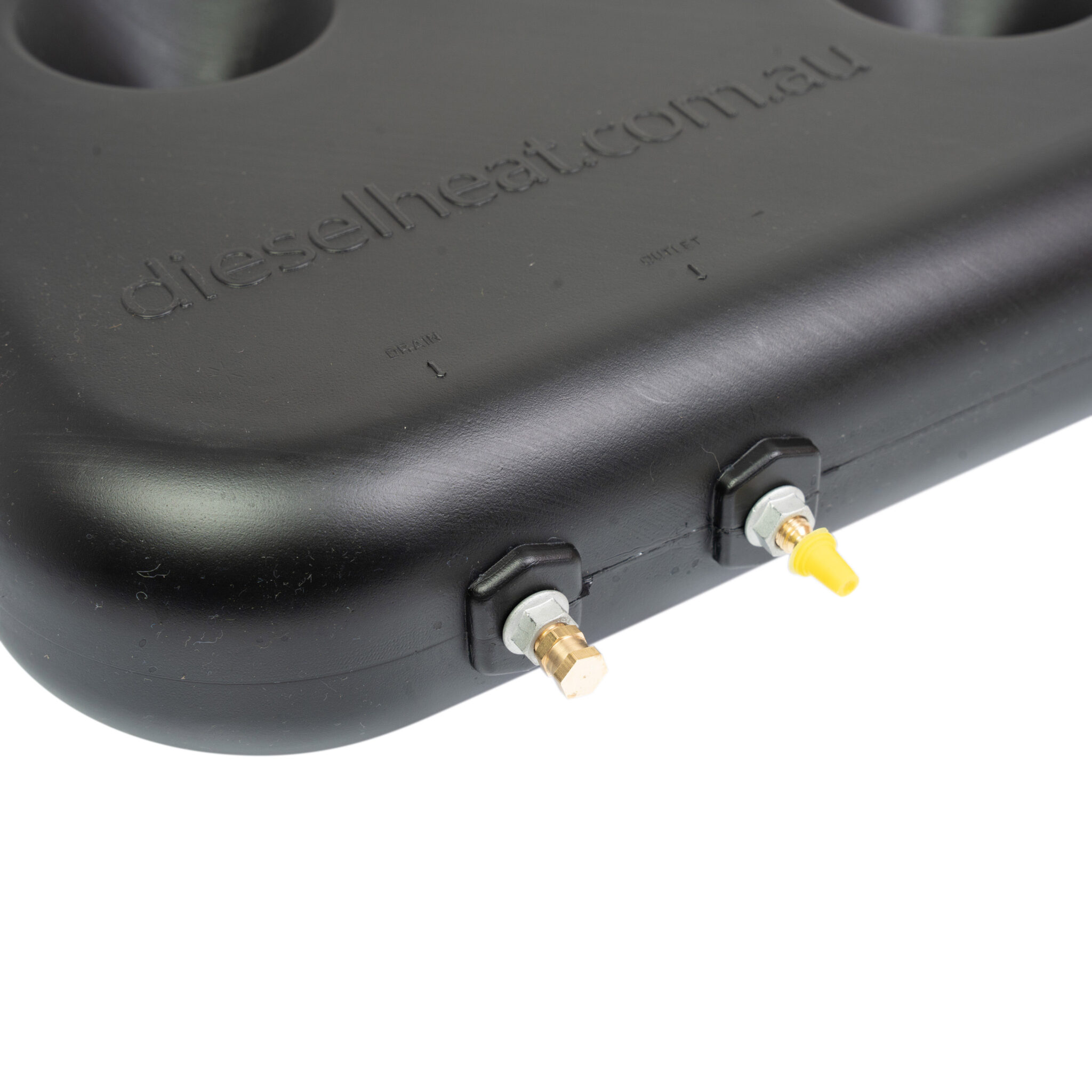

pre-installed 3/16 brass outlet spigot.

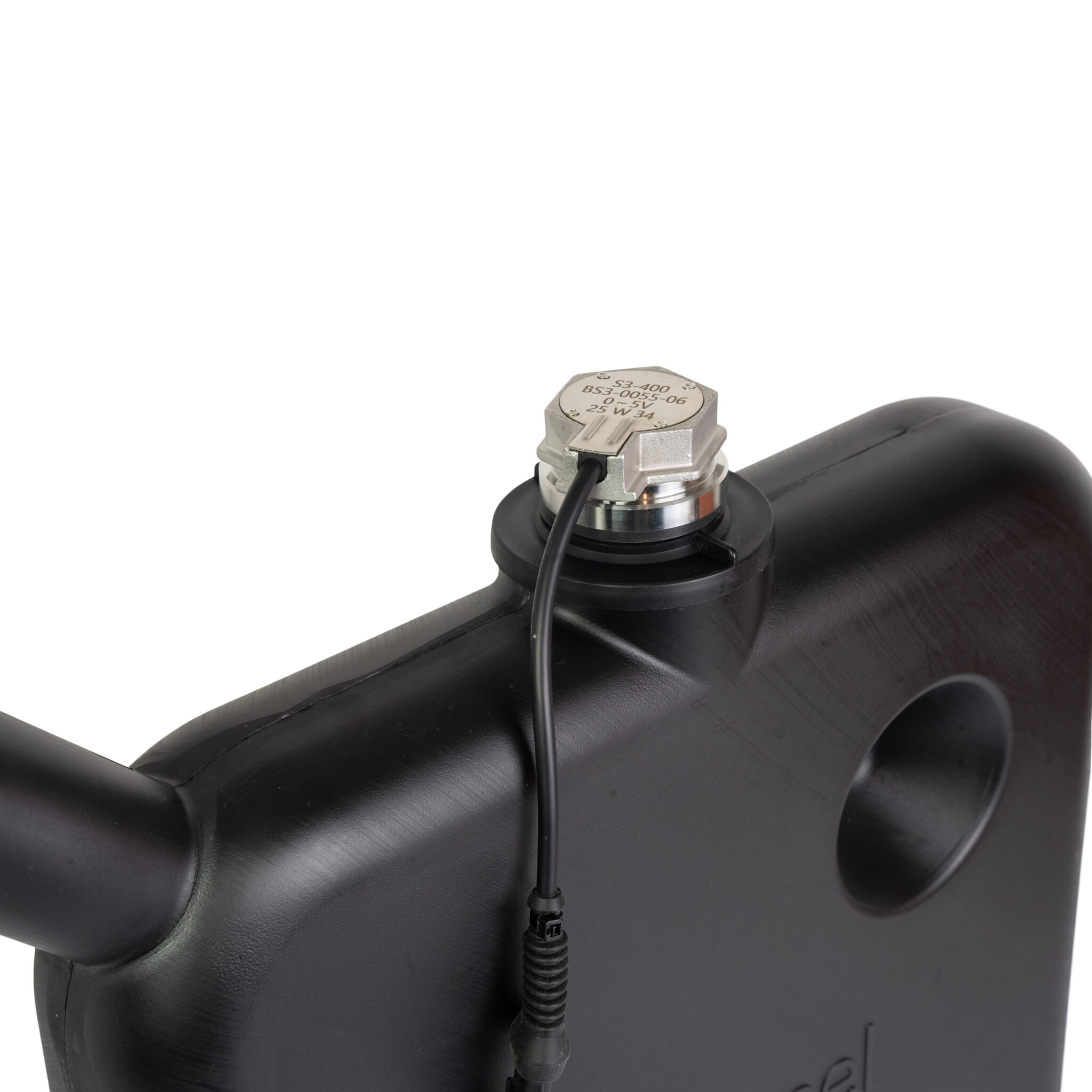

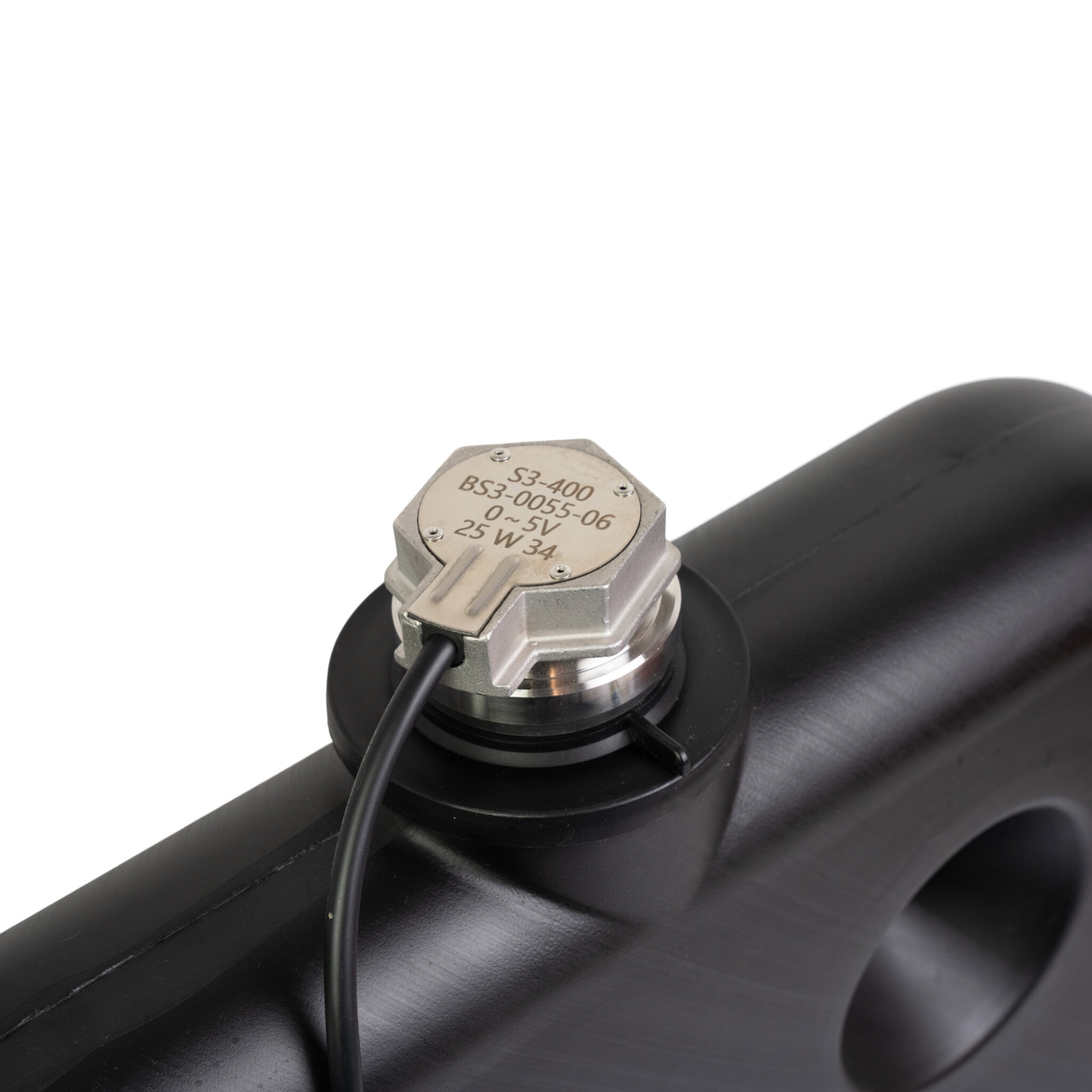

Digital Tank Level Sender
Supply Voltage: 12V
Signal Voltage: 0-5V (0V = empty, 5V = full)
Cable: 8m heavy duty cable

Compatible
Redarc Rogue
Garmin Empirebus
Victron GX Touch using Victron GX Tank 140
Stand alone 0-5V gauge.

Wiring
Red – +12V
Black – negative
Blue – signal

Dieselheat offers a two year warranty on this product. Upon receipt of proof of purchase of a product, Dieselheat will, where possible, provide product support via telephone or email. If Dieselheat determines that the issue necessitates the return of the product for inspection and/or repair, it is your responsibility to uninstall the product and return the product at your cost to Dieselheat. Upon repair of the product, Dieselheat will return the product to you at its cost. It is your responsibility to reinstall the product. See our full warranty terms here.
