Dieselheat has developed our own ducted fan unit to produce more heat, less noise and better temperature control whilst using less power. We have combined a large custom made copper and aluminum heater core with a latest technology electronically controlled (EC) brushless drum fan. Our enclosure is lined with high quality sound deadening foam to give the highest heat output at the lowest noise in the smallest possible space. Package with our hydronic thermostat to control the fan and manage room temperature this is the ultimate air heating add on for our diesel hot water systems.

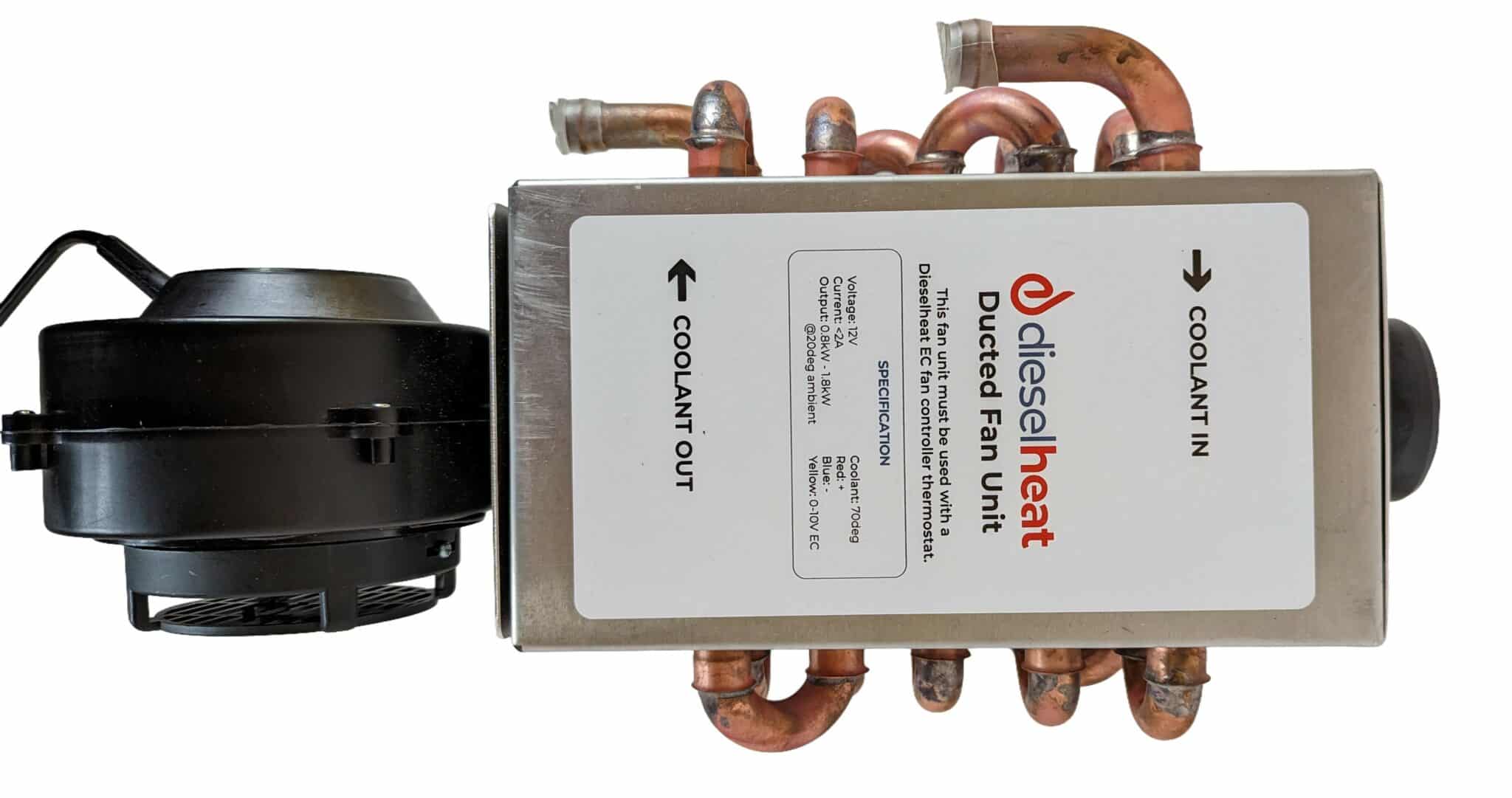

Ducted Fan Unit
Output: 1.6kW output @ 20 degrees ambient; 1.8kW output @ 10 degrees ambient
Power: less than 2A on high.
Size: 220W x 155H x 390L (fan in vertical direction not including duct outlet)
- High quality copper coolant pipes optimised for maximum heat output
- Quiet electrically controlled brushless AC drum fan
- Aluminum case lined with specialised sound absorbing foam/vinyl
- Fan orientation can be changed for installation in tight spaces.
- 1 x 60mm outlet
- optional 90mm inlet duct
- Suitable for boats, RVs and off grid houses.
Hydronic Thermostat
- Simple operation via touch screen
- 3 manual fan speeds and automatic mode with infinitely variable fan speed
- Optional remote temperature probe
- Operate in either hot water only or hot water and air heating modes.
- Wiring loom included
- Includes a relay that acts as a switch to turn on or off a diesel hydronic furnace.
- Programmable parameters include manual fan speeds, min and max fan speeds on auto mode, sensitivity on auto mode.
Note: This fan unit is has to be operated with the Dieselheat hydronic thermostat (included) to control the EC fan.
