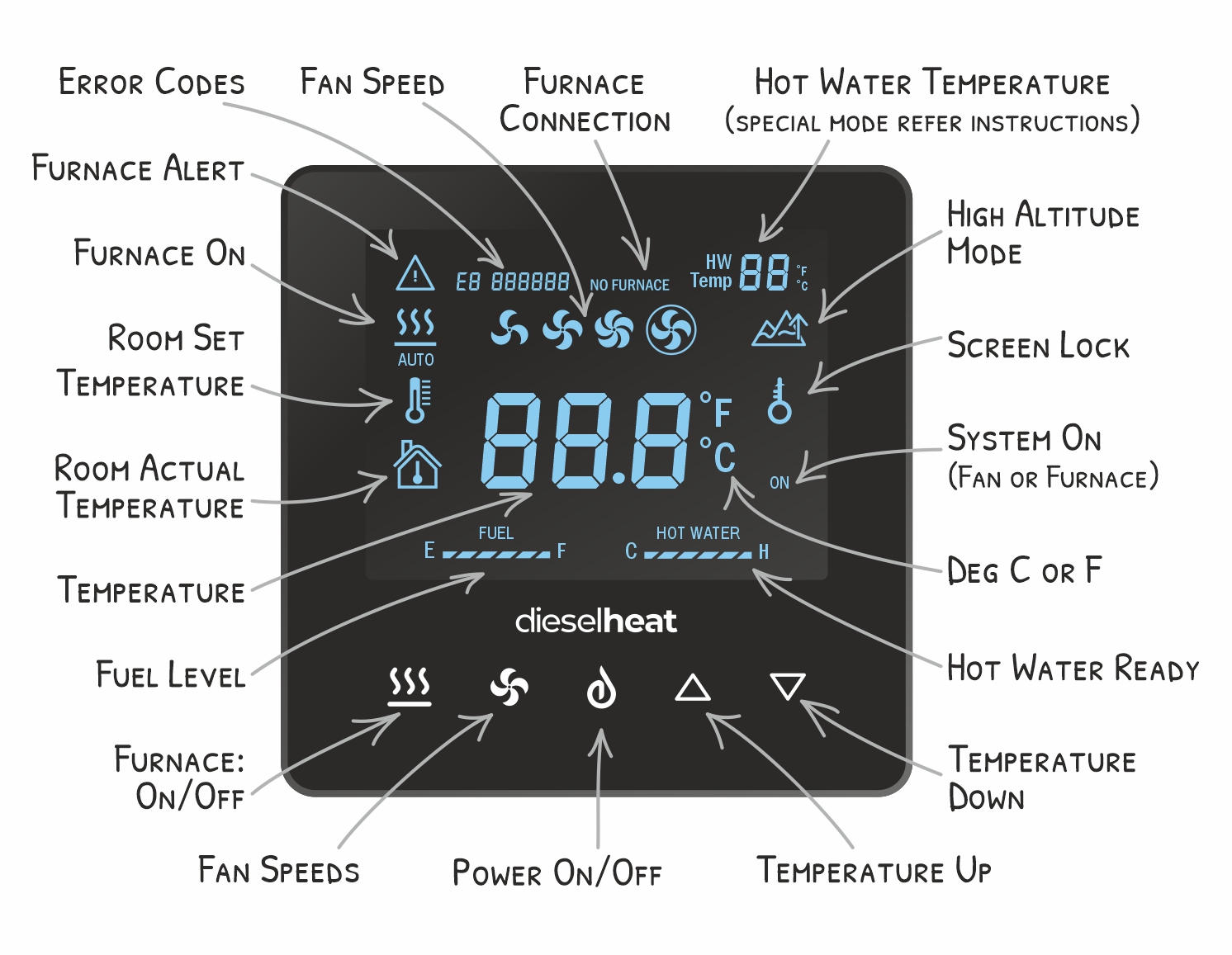

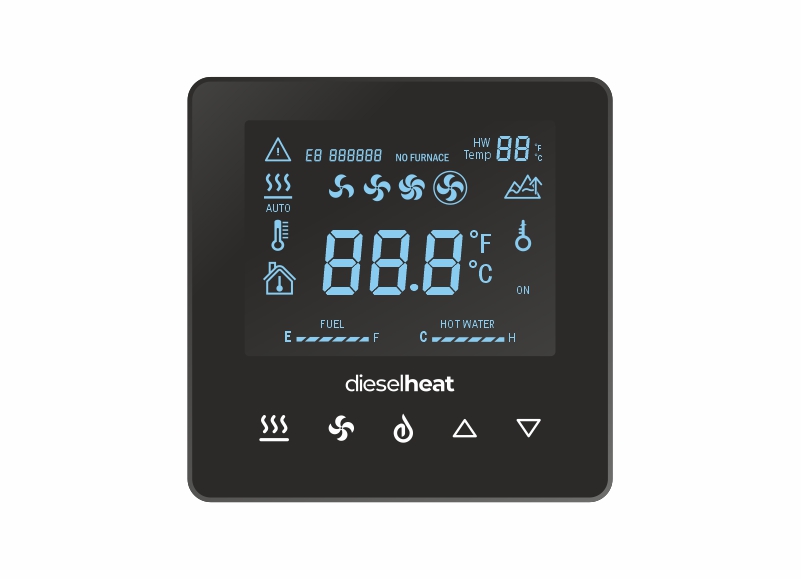

The V4 Dieselheat touch screen thermostat controls the air temperature (by varying fan speed) and hydronic furnace in a Dieselheat hydronic hot water and heating system.
Specifically designed to work with the Eberspacher D5E HS3 hydronic furnace, this controller features full CAN digital communication to the furnace.
Key Features
- Simple operation via touch screen
- Backlit screen/buttons
- 3 manual fan speeds and automatic mode with infinitely variable fan speed
- Controls the electronically controlled Dieselheat ducted fan units.Â
- Optional remote temperature probe (sold separately)
- Operate in either hot water only or hot water and air heating modes.
- 5m wiring loom and mounting kit included
- Automatic control of electric coolant valve for air heating
- Programmable parameters include manual fan speeds, min and max fan speeds on auto mode, sensitivity on auto mode.
New in V4 Version
- Hot water readiness indicator shows if system is up to temperature.
- Fuel level gauge (sender unit for black wafer tank sold separately).
Eberspacher D5E HS3 CAN Functions
- Detect furnace or indicate if furnace not present
- Read and display fault codes
- Delete fault codes
- Activate high altitude mode
Kit Contents
- V4 CAN enabled hydronic thermostat
- 5m main wiring loom
- 3m power wiring loom (which uses spare slot in Eberspacher fuse holder)
- installation instructions
- user instructions
