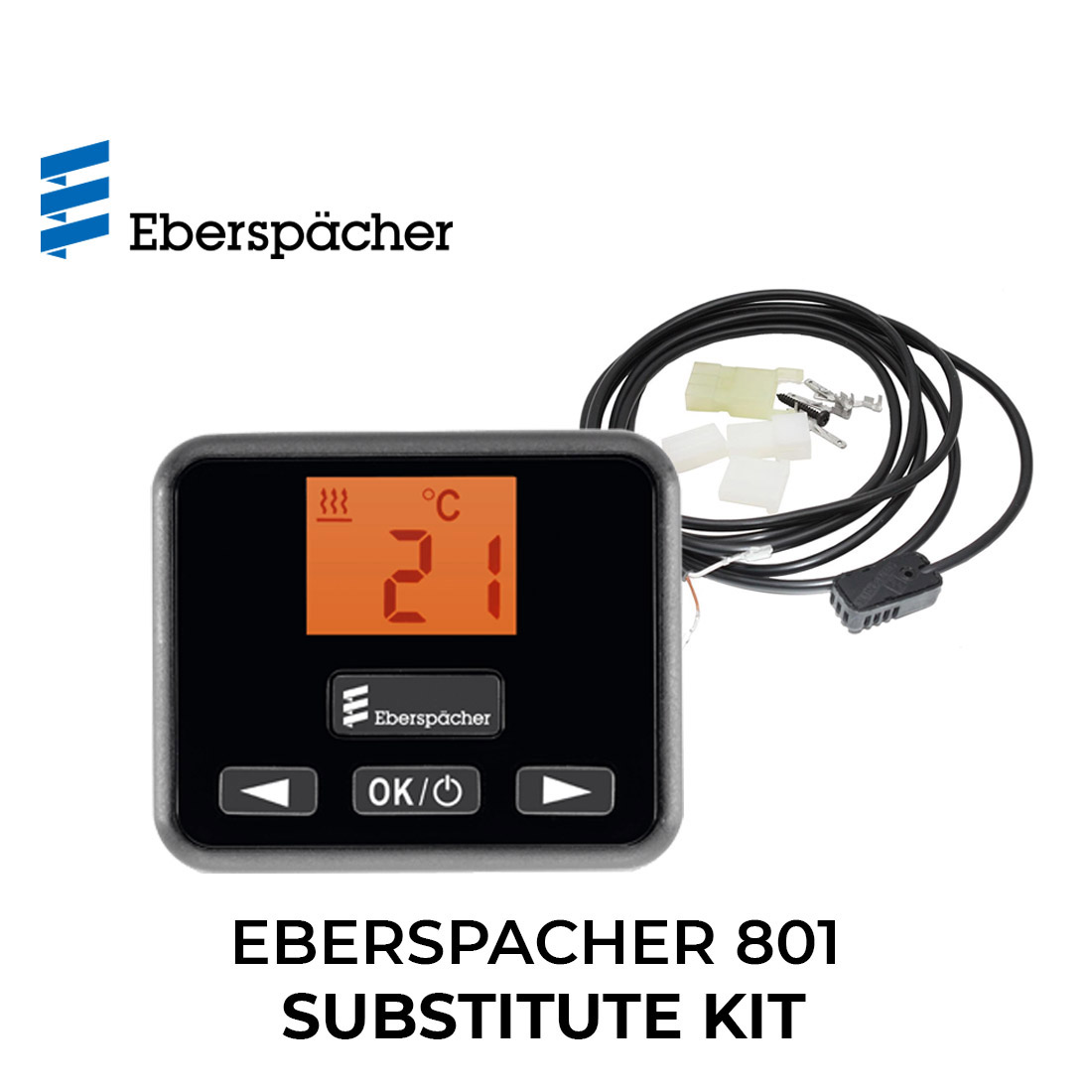

The Eberspaecher 801 controller is discontinued and unavailable so this kit replaces it by using the newer easy to use Easystart Select controller with the Eberspacher remote temperature sensor to replicate the functions of the 801.
To Operate the Easystart Select needs the following wires
Red – +12V
Brown -12v
Blue/White – Communications
Brown/White – joins to Red/Grey – joins to temperature sensor
Grey – joins to temperature sensor
Please ensure you have these wires available at the point where your controller plugs into the heater loom.
In most cases some manual joining of wires where the controller connects to the existing loom will be required. See detailed wiring instructions on the Documents and Manual tab.
Replaces Part Numbers: 292100810003 / 29.2100.81.0003 and suits
- Espar / Eberspacher Airtronic D2 12v
- Espar / Eberspacher Airtronic D2 24v
- Espar / Eberspacher Airtronic D4 12v
- Espar / Eberspacher Airtronic D4 24v
- Espar / Eberspacher Airtronic D4 Plus
- Espar / Eberspacher Airtronic D4S
- Espar / Eberspacher Airtronic D5
